For the obvious reasons, I invariably get too busy to blog exactly when things get interesting...
 |
 |
One of the nice things about having multiple teams is that you get to see different ideas at work, and NSS is definitely not short on ideas.

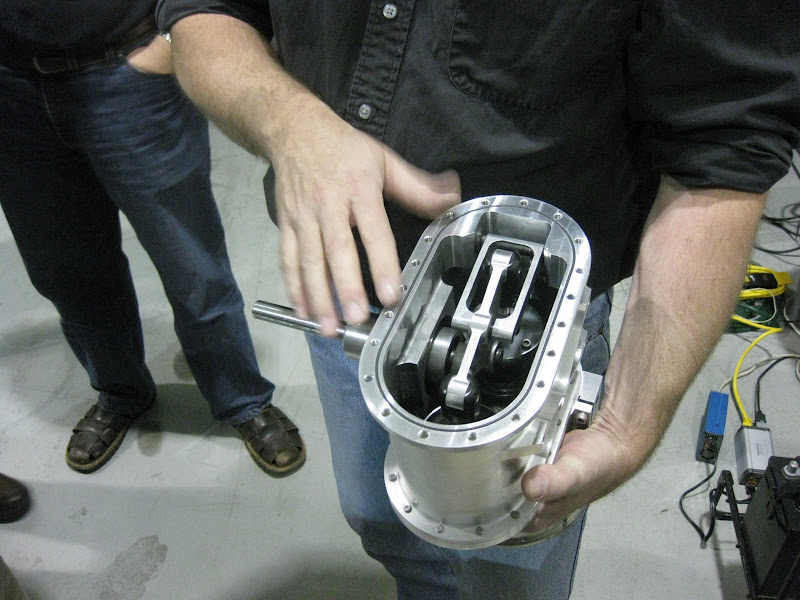

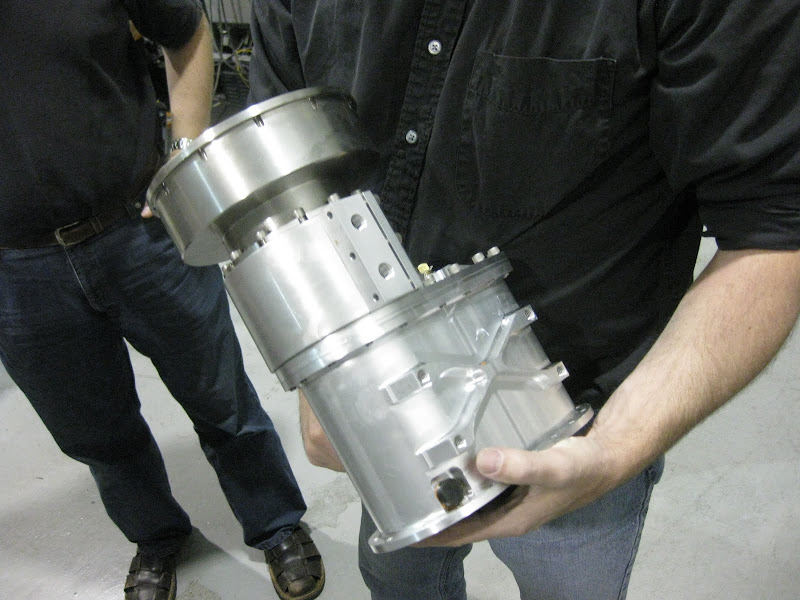

Their first climber design featured a thermal (rather than photovoltaic) receiver, based on a Stirling engine. (Stirling engines are high efficiency engines often used for solar power generation) Stirling engines are a difficult proposition for a Space Elevator climber, since they typically weigh a lot more than a PV panel, and so NSS had to design and manufacture their own engine – and it is indeed a beauty. Using Helium as the working fluid, this engine also uses a transparent cylinder head in order to get the laser beam directly into a thermal absorber that is placed inside the cylinder – a perfect way to avoid the latency associated with the thermal mass of a regular absorber plate.
The problem NSS ran into was with properly sealing the engine while keeping the weight down. Anyone who’s ever worked with Helium knows how difficult it is to seal – it is a noble gas, and so is monatomic, which means its molecules are really small, and they get around most seals.
The other problem faced by thermodynamic engines is that while they are able to capture 100% of the energy of the beam (unlike the 30-50% of PV cells) they have to waste a good fraction of it at the heat exhaust side, and this gets worse the hotter the exhaust is. Which means that a thermodynamic engine needs to be coupled to an efficient heat exchanger – something that NSS started to design as well.
As it turned out, NSS was not able to solve the He sealing issue, and started working fast towards a photovoltaic “plan B” climber. However, not all of the effort was wasted – the heat exchanger design turns out to be very important in keeping their PV cells cool – more on that on the next post.
As a side note, Bert Murray and Matt Abrams have vowed that if the prize money is not awarded this year, they will solve the Helium seal issue and be back next year with a working Stirling climber.
